MX-600A MX-1500A

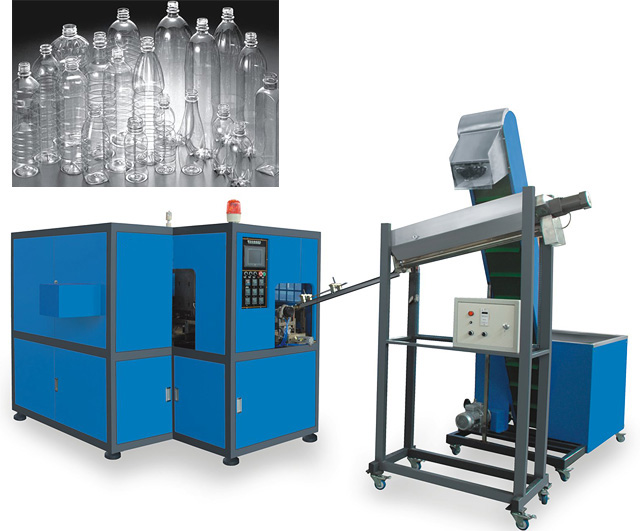

Full-automatic Blow Molding Machine

        • Colouful touch screen:WEINVIEW(Taiwan);PLC:MITSUBISHI(Japan)/DELTA(Taiwan). Operate consistently and simply.
        • Pneumatic elements:German FESTO/Japan SMC/MOHE(Joint).
        • Specially designed for energy-saving purpose.Mechanical unit is compact and sound.
        • Features trouble alarm and diagnostic units to allow easy maintenance.
        • Environmentally friendly design.Nontoxic conveyor belt to carry preforms.

    Container



    MX-600A

    MX-1500A

    Theoretical output

    Pcs/hr

    1000-1400

    900-1300

    Max.Container Volume

    L

    0.6

    1.5

    Preform Inner Diameter

    mm

    70

    85

    Max.bottle diameter

    mm

    85

    110

    Max. bottle height

    mm

    280

    340

    Cavity

    Pc

    1

    1

    Max.heating power

    Kw

    18

    24

    Installed power

    Kw

    20

    26

    Main machine size

    M

    2.0x1.65x1.85

    2.4x1.7x1.9

    Machine weight

    T

    1.5

    1.7

    Feeding Machine1 dimension

    M

    2.1x1.0x2.3

    2.1x1.0x2.3

    Feeding Machine1 Weight

    T

    0.25

    0.25

    Feeding Machine2 dimension

    M

    1.0x0.5x2.2

    1.0x0.5x2.2

    Feeding Machine2 Weight

    T

    0.05

    0.05
