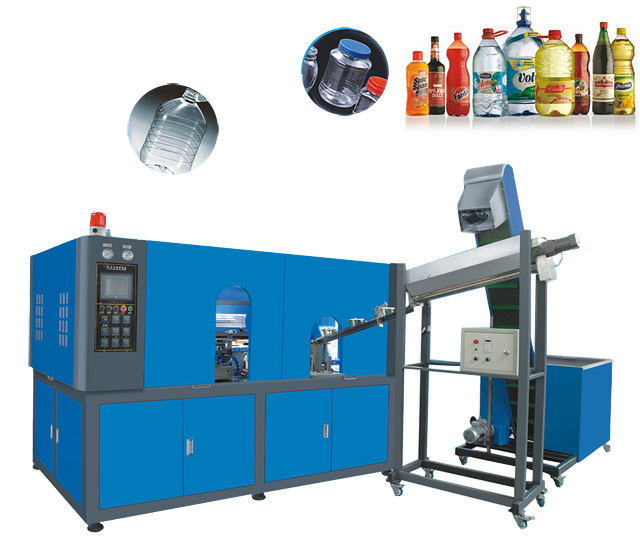

- MX-5000 automatic machine can blow bottles of different capacity, such as 1-5L bottle with wide-mouth,and 3L-6L edible oil bottle, etc.
- Colouful touch screen:WEINVIEW(Taiwan);PLC:MITSUBISHI(Japan)/DELTA(Taiwan). Operate consistently and simply.
- Pneumatic elements:German FESTO/Japan SMC/MOHE(Joint).
- Specially designed for energy-saving purpose.Mechanical unit is compact and sound.
- Features trouble alarm and diagnostic units to allow easy maintenance.
- Environmentally friendly design.Nontoxic conveyor belt to carry preforms.
|
| |
|
|
 Container |
|
|
MX-5000A |
|
Theoretical output |
Pcs/hr |
500-800 |
|
Container Volume |
L |
5 |
|
Preform Inner Diameter |
mm |
120 |
|
Max.bottle diameter |
mm |
200 |
|
Max. bottle height |
mm |
350 |
|
Cavity |
Pc |
1 |
|
Max.heating power |
Kw |
27 |
|
Installed power |
Kw |
30 |
|
Main machine size |
M |
2.85x2.07x2.15 |
|
Machine weight |
T |
2.3 |
|
Feeding Machine1 dimension |
M |
2.1x1.0x2.3 |
|
Feeding Machine1 Weight |
T |
0.25 |
|
Feeding Machine2 dimension |
M |
1.0x0.5x2.2 |
|
Feeding Machine2 Weight |
T |
0.05 | | |
