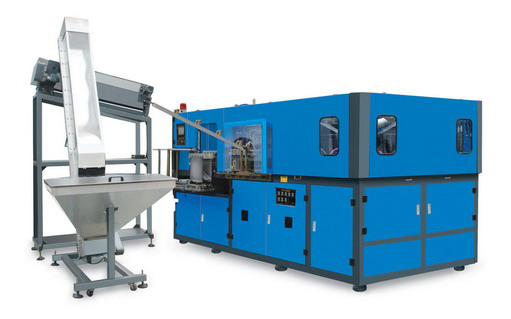

MX-S6
Full-automatic Blow Molding Machine

  • Colouful touch screen:WEINVIEW(Taiwan);PLC:DELTA(Taiwan). Operate consistently and simply.
  • Pneumatic elements:German FESTO/Japan SMC/MOHE(Joint).
  • Specially designed for energy-saving purpose.Mechanical unit is compact and sound.
  • Features trouble alarm and diagnostic units to allow easy maintenance.
  • Environmentally friendly design.Nontoxic conveyor belt to carry preforms.

Container



MX-S6

Theoretical output

Pcs/hr

5000-6000

Max.Container Volume

L

0.6

Preform Inner Diameter

mm

38

Max.bottle diameter

mm

70

Max. bottle height

mm

260

Cavity

Pcs

6

Max.heating power

Kw

48

Installed power

Kw

50

Main machine size

M

4.1x2.3x2.3

Machine weight

T

3.6

Feeding Machine1 dimension

M

2.1x1.5x2.5

Feeding Machine1 Weight

T

0.25

Feeding Machine2 dimension

M

1.3x0.8x2.2

Feeding Machine2 Weight

T

0.05
