MX-600 MX-1500

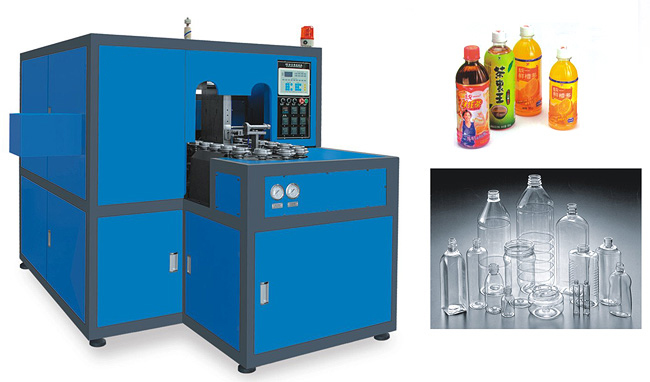

Hand Feeding Preform Automatic Blow Molding Machin

This model could blow normal PET bottles as well as wide-mouth bottles.
Advantages: preforms feeded by hand and bottles heated and blowed automatically; no technical requirement from this worker; hourly capacity from 1000 to 1300pcs; lower cost than usual automatic machines while enjoying stable performance.

Container

		MX-600	MX-1500
Theoretical output	Pcs/hr	1200-1300	900-1300
Container Volume	L	0.6	1.5
Preform Inner Diameter	mm	70	85
Max.bottle diameter	mm	85	110
Max. bottle height	mm	280	340
Cavity	Pc	1	1
Max.heating power	Kw	18	21
Installed power	Kw	19	22
Main machine size	M	2.25x1.68x1.85	2.45x1.8x1.9
Machine weight	T	1.3	1.5
